DIN Rail Timer

MODEL

RELAY OUTPUT

SUPPLY VOLTAGE

TIME RANGE (Selectable)

FUNCTION

TMR-23-P1

One change
Over (1CO)

1) 230 VAC
2) 110 VAC
3) 24 VAC/DC

1.5/6/15/60 sec.

On Delay / Off Delay
(Interval)
(Selectable)
(Refer Fig. -1)

TMR-23-P2

Two change
Over (2CO)

TMR-23

Two change
Over (2CO)

1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 12 VDC

1.5/6/15/60
SEC/MIN/HRS.

TMR-24

Two change
Over (2CO)

24 to 230 V
AC/DC

TMR-EC1

One change
Over (1CO)

100-230 VAC
& 24VAC/DC

15/60 SEC/MIN

On Delay / Off Delay / Equal
Cyclic (On / Off time First)-
(Selectable) (Refer Fig. -1.9)

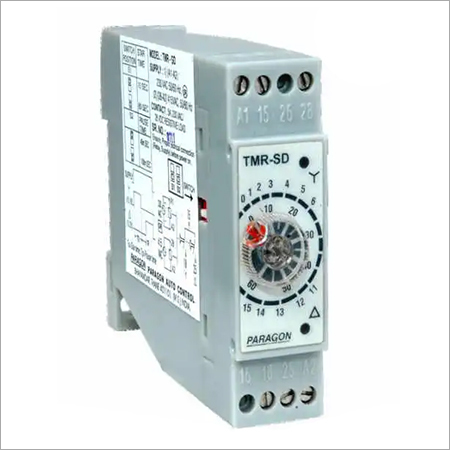

TMR-SD
(Star-Delta timer)

Separate NO Contacts for Star & Delta

1) 230 / 415 VAC
2) 110 VAC

Set Time : 15/60 SEC.
Pause Time : 40/100 mSEC.

Star Delta Change Over (Refer Fig. -4)

TMR-23C (Cyclic Timer)

Two change
Over (2CO)

1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 12 VDC

3/30
SEC/MIN/HRS.

Asymmetrical
Cyclic On Timer/Off Time First,Single / Multi
Cycle (Selectable)
(Refer Fig.-5)

TMR-24 C (Cyclic Timer)

Two change
Over (2CO)

24 to 230 V
AC / DC

TMR-FSR (Forward (T1) Stop (T3) Reverse (T2) Timer

Separate one change over for Forward and Reverse

1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 415 VDC

Forward Time (T1) : 6/60 SEC/MIN.
Reverse Time (T2) : 6/60 SEC/MIN.
Stop Time (T3) :
30 SEC / 3 MIN

Forward-Stop-Reverse
Time, Single Cycle/
Repeat Cycle
(Selectable)
(Refer Fig.-6)

TMR-EST
(Engine Multi Attempt Starting Timer)

Two Set of one change over

1) 12 /24 VDC
2) 230 VAC

Time -1 (ON) : 0-30 SEC.
Time - 2 (Off) : 0-30 SEC
No. of Start Attempt : 0 to 15 (Selectable)

Relay 1 : Engine Start attempt Relay 2 : Engine Fails to Start alarm (Refer Fig. 19)

TMR-DUAL
(Two Set Point Timer)

Separate one change over for each set Point

1) 230 VAC
2) 24 VAC / DC

Time- 1 : 6/60 SEC/MIN.
Time- 2 : 6/60 SEC/MIN.

Two Set Point Timer with individual On Delay / Off Delay (Interval) Selectable for both (Refer Fig.- 1)

TMR-INST
(Dealy Timer with Instant Contact)

One Change Over Instant Contact & One change over delayed contact.

1) 230 VAC
2) 24 VAC / DC

1.5/6/15/60
SEC/MIN/HRS.

On Delay / Off Delay (Interval) Selectable with Instant Contact (Refer Fig. -8)

TMR-SR1
(Single Range)

One change
Over (1CO)

1) 230 VAC
2) 110 VAC
3) 24 VAC/DC
4) 12 VDC

15 SEC
30 SEC
60 SEC
(Factory Set)

On Delay, Off Delay,
Equal Cyclic
(Factory Set)
(Refer Fig. - 1.9)

TMR-SR2
(Single Range)

Two change
Over (2CO)
