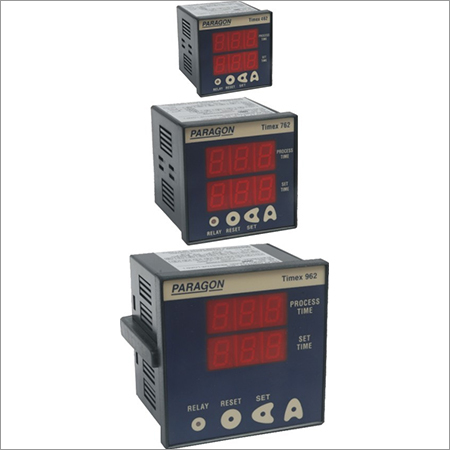

MODEL (Function)
|
Timer-920-2D-P1
Timer-920-3D-P2
|
Timer-01-2D-P1 Timer-01-3D-P2
|
Timer-25-2D-P1 Timer-25-3D-P2
|
|
Size
|
(96 x 96 x 74) mm
Refer Size (1) table
|
(72 x 72 x 74) mm
Refer Size (2) table
|
(48 x 48 x 92) mm
Refer Size (3) table
|
|
LED Display
|
2 / 3 Digit,0.5" Height
|
2 / 3 Digit,0.5" Height
|
2 / 3 Digit,0.39" Height
|
|
Time Setting
|
By Push wheel type switches, 2 / 3 no.
|
|
Time Range
( Selectable )
|
A) for 2D : 2 Digit ; 0.99, 9.9, 99 Sec / 9.9, 99 Min / 9.9 Hrs. &
B) for 3D : 3 Digit ; 9.99, 99.9, 999 Sec / 99.9, 999 Min / 99.9 Hrs.
|
|
Relay Output
|
A) for P1 : One change over &, B) for P2 : Two change over , with
5A @ 230VAC / 24 VDC contact ratings.
|
|
Delay Mode
|
On delay, Off delay (interval) - Selectable.
|
|
Count Direction
|
Up / Down Counting direction - Selectable.
|
|
Start Input
|
Pulse start input from rear terminal.
|
|
Reset Input
|
Front panel key / Rear terminal for remote reset / At power on.
|
|
Accuracy
|
0.05 % or 50 msec, whichever is greater, Quartz crystal base.
|
|
Power Supply
|
90 to 250 VAC/DC @ 50/60 Hz.( 24 VAC/DC provided on request)
|
|
General Features
|
Set Point : Single set point , Reset recovery time : < 100 msec
Led indication for Relay status, Mounting : Panel mounting type
|
|
Memory Retention
|
------------------------
|
10 year, available in
Timer-01-3D-P2-MR
|
10 year, available in
Timer-25-3D-P2-MR
|
